Cordless Surveying Mini Prism With 4 Poles K9 Glass Aluminum Material

Name: Cordless Surveying Mini Prism With 4 Poles K9 Glass Aluminum Material
Brand: BCTEK
Price: 1 USD

Wholesale Cordless Surveying Mini Prism With 4 Poles K9 Glass Aluminum Material from china suppliers

Place of Origin : Jiangsu, China

Brand Name : BCTEK

Model Number : FDC063

Packaging Details : plastic box

Supply Ability : 10000 Piece/Pieces per Month

MOQ : 200 pcs

Price : Negotiated

Delivery Time : About 15 Days After Receiving The Deposit(Based On The Quantity)

Payment Terms : T/T

Name : Set Cordless Power Tool

Warranty : 1 year

Customized support : OEM

Material : K9 glass + Aluminum

Surface Quality : 60/40

Dimension Tolerance : 0.2mm

Angle Tolerance : <±5"

Product name : Prism Assembly

Coating : Cooper

MOQ : 200PCS

Contact Now

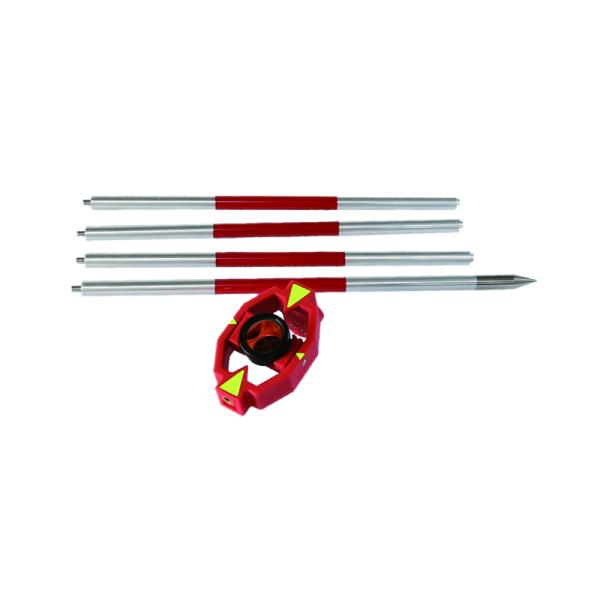

With 4 Poles Leika Total Station Surveying Mini Prism Set Cordless Power Tool

Features:

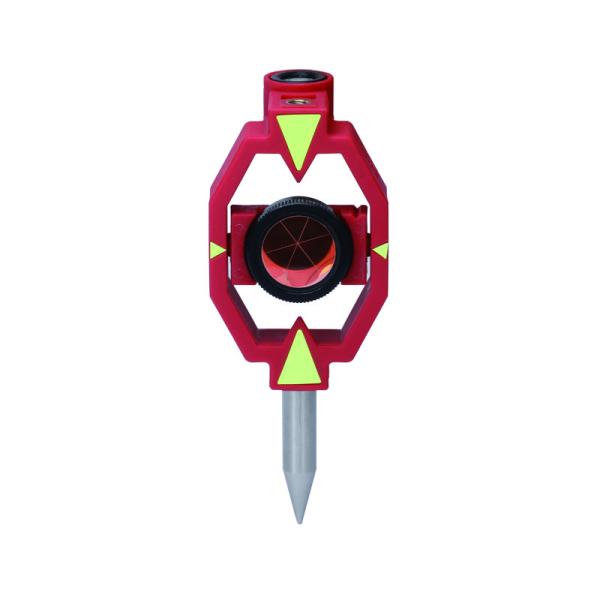

* 38.1mm mini prism, coated with silver.
* Prism offset: 0mm;17.5mm;0/-30mm.
* Five screw-on aluminum rod extend to 1.5m.
* Equipped with side cones as double lock.
* With soft bag

* Tribrach for optional

Specification

Product name	Prism Assembly
Model Number	FDC063
Material	K9 glass + Aluminum
Surface Quality	40/20
Dimension Tolerance	0.1mm, +0.0/-0.1mm
Angle Tolerance	2"-5"
Flatness	1/10, 1/10 Lambda
Application	Optical Surveying Instruments
Glass Coating	Copper
Bevel	<0.2x45°
Clear Aperture	>90%
Diameter	25.4mm
Offset	0mm;17.5mm;0/-30mm
Package	Soft bag
